How to Make an Ethernet Splitter?
Ava Wright How to Make an Ethernet Splitter? To build an Ethernet splitter, simply follow these steps. Connect the Ethernet cable’s RJ45 plug and keystone connector. One Splitter plug to the RJ45 wall plate. Patch Panel Splitter.
What Is Ethernet Splitter?
An Ethernet splitter is Ethernet equipment. This Ethernet equipment is difficult since there are two types of Ethernet splitters: one for transporting two Ethernet connections over one cable and another for Power over Ethernet.
Ethernet splitters are often confused with switches. Ethernet splitters might be mistaken for Ethernet switches, however, they serve different purposes. It might be confusing to know what each sort of Ethernet equipment does.
Unfortunately, many people have Ethernet splitters without knowing what they are or the difference between a splitter and a switch.
What is an Ethernet Switch?
High-speed Ethernet switches create a network. To reduce interference, the device must split signals between ports. Here, you’ll connect the router and other devices. Network addresses identify every Ethernet connection. So, info reaches the right client, and traffic isn’t mixed. 5 to 52-port switches are available.
Switching packets minimizes network traffic. So, client devices receive data promptly. So, devices get optimal bandwidth without interference. Full-duplex protocols are used. Receiving and sending network traffic simultaneously boosts efficiency.
Problems with switch technology. Switches can slow data. Switches require electricity, which obscures their purpose. A working control is expensive.
Ethernet Switch vs Splitter
An Ethernet switch must be properly configured, follow standards, and have numerous power inputs. A splitter is a simple device that you attach to your current Ethernet line. This extension divides the cable in two.
Switches require an external power supply, whereas splitters do not. Network switches with high-speed ports may connect several devices simultaneously. Splitters can only connect two devices, unlike switches.
If you want to expand your present network to include more devices, you need a switch. It’s a foolproof investment. Splitters are especially useful in a two-room home or company.
Super User Explains Ethernet Splitter
A splitter isn’t a switch or a hub. It joins two Ethernet lines into one. If you don’t trust Ethernet splitters, build one. A splitter joins two 100mbps Ethernet connections into one. A splitter splits two ports. Isolates ports, unlike hubs and switches.
100Mbps Ethernet uses 2 of a cable’s 4 pairs; 1Gbps uses all 4. 100Mbps Ethernet uses two pairs. Two 100Mbps Ethernet pairs are unused. PoE uses unconnected pairs (PoE only works with 100Mbps connections for this very reason). Two unused pairs are used for another 100Mbps connection.
Unfortunately, there are several downsides to using splitters:
Even with 1Gbps gear, you’ll only get 100Mbps. Each connection lacks 1Gbps pairs. 1Gbps hardware will auto-negotiate 100Mbps when 2 pairs are absent.
Switch/router needs 2 free ports. One connection per port on switches/routers. A splitter / duty won’t work to turn one connection into two. hub’s If you split one connection, I see two consequences. The switch/router port only works with one device.
Any cable connected to the splitter counts toward cable length. A splitter has 2 physical connectors, thus you have 2 cable lengths. Splitters don’t enhance signals, therefore cable length isn’t increased.
Note: It works under particular conditions. If you require more than 100Mbps, add another cat 5e cable or a switch. If not, 100Mbps will do. If your router/switch has only one spare part, this won’t work.

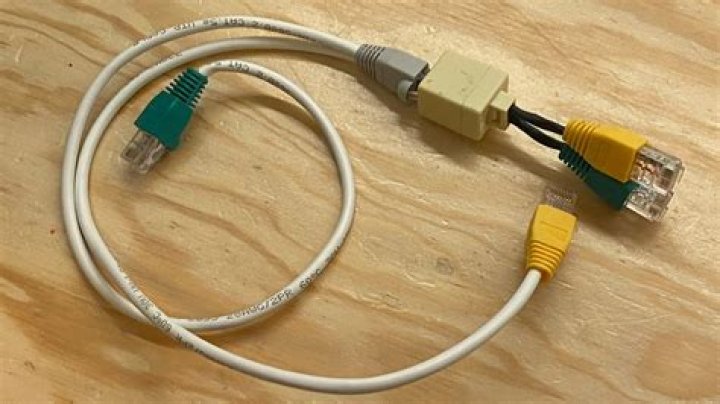

How to Make Your Own Ethernet “Splitter”?
With an Ethernet “splitter”, you may concurrently link two PCs (or other network devices) on one Ethernet cable. Ethernet splitters cost about USD 20.00 to buy.
Set up a home theater system (HTPC) in the living room with just two computers and one Ethernet port and two PCs in the office (both of which have Ethernet ports).
If you can’t reasonably (without breaking up walls or renting a scissor lift) pull one extra ethernet wire from the patch panel to the office/living room etc. you might consider the usage of an Ethernet “splitter”.
I’m going to assume that the ethernet wall plate and patch panel have all four pairs of ethernet wires connected correctly.
Step 1: What You Need
To create your Ethernet splitters you’ll need the following:
Two RJ45 Crimpable Plug
Four keystone RJ-45 connectors
Short Ethernet Cable Scrap (about 2 feet) (approximately 2 feet)
The tools you’ll need:
RJ45 Crimp Tool
Craft knife
110 Punch Down Tool
Loctite Super Glue
Step 2: Crimp the RJ45 Plug to the Ethernet Cable
You should use the following wiring scheme:
White/orange
White/Green
Blue/White
White/Brown
Orange
Blue
Green
Brown
Step 3: Punch the RJ-45 Keystone Jacks on the Other End
Take the other end of the cable, trim it to 9 inches and punch down the four pairs using the following wiring scheme:
Jack No. 1:
1 White/Orange to pin 1 keystone jack
2 orange keystone jacks together
3 white/green keystone jacks three
6 Green to pin 6 keystone jack
Jack No. 2
4 Blue to pin 2 keystone jack
5 White/Blue to pin 1 keystone jack
Pin 3 keystone jack with pin 7 white/brown.
6 keystone jack to be pinned by 8 Brown
Once all the pairings are punched down, you may glue them together side by side with the two keystone jacks.
Step 4: Make One More Splitter
By combining the previously provided data, resulting in two splitters.

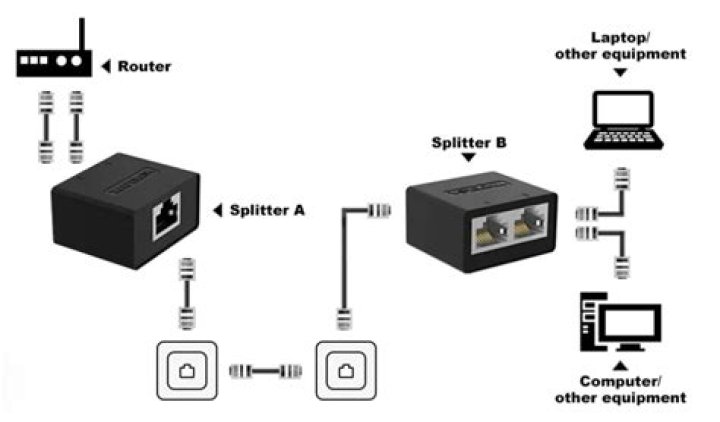

Step 5: Connect the Rj45 Wall Plate to One Splitter.
Plug in the splitter and the two computers will be able to communicate with one another.
Step 6: Plug the Other Splitter into the Patch Panel
As a result, connect two patch cables from the splitter to the switch’s two available Ethernet ports. To verify that your splitter connections are OK, turn on the two “LINK” leads on the switch where the patch cord is attached.
Summary:
Using only one ethernet wire, we are now able to connect two computers at once. Similar to PoE, but with an additional “data” stream rather than direct current (DC). However, if you can, run one extra ethernet wire from the patch panel to the wall plate. However, the Ethernet splitter might come in handy in some instances.
The Advantages and Disadvantages of Ethernet Splitter
Ethernet Splitters’ Advantages
The price is lower than other networking equipment. This makes it cheap and easy to set up.
Splitters don’t require software installation or configuration, unlike other networking devices. This means the equipment is put up manually.
This device is also ideal for home use. This means splitters work well in a home since the number of devices to be joined is modest, usually two per room.
If you have a 100Mbps connection and two devices to connect, splitters are optimal. Due to 100Mbps Internet bandwidth for each device.
TP-Link 5 port is a fantastic ethernet splitter to try. The device separates existing connections into numerous. This gadget has 4 connections (1 input + 4 output).
Updated versions have 8 output ports. Tenda 5-port Gigabit Ethernet Desktop switch. This MT-VIKI 2-port network switch splitter picture is great.
We expect the ethernet to enable Gigabit Ethernet shortly, but as it is, it inhibits people’s work rate in many fields.
Ethernet Splitters’ Disadvantages
Here, we’ll discuss the gadget’s flaws. Speed limitations are problematic.
An ethernet splitter gives 100Mbps per port. If you’re connected to a network with more than 100Mbps, this device’s resources won’t be necessary.
Second, limited device support. If you have more than two devices to connect, this splitter isn’t the greatest option.
This device won’t work if your router only has one ethernet port. In this situation, it’s difficult to use splitters, thus sacrifices must be made.
About reducing the number of cables, there is a negative. We need two splitters despite the device’s potential to reduce cables.
Ethernet cable splitters aren’t great. The delay in network traffic. This is unprofessional since the reduced speed would degrade your Ethernet-connected equipment, something no one wants.
Ethernet splitters have existed for years, but their limitations haven’t changed much. In a world with rising bandwidth needs, devices still use Fast Ethernet. Despite their benefits, these splitters are rarely lucrative.
Summary:
Simplest is the Ethernet splitter. It splits the internet like coax. Splitters let you run one cable across your home. Each device must be connected to the splitter independently. Periodically, the splitter adds 2 devices. It’s 10/100 Mbit Ethernet. Since these connections only have four wires, unlike Cat 5e, both ports can transfer 100MB/s.
A Guide to Choosing the Best-Priced Ethernet Splitter
One Ethernet line can’t power all your devices. Best Ethernet port splitters can aid with network growth.
During gaming, when many devices must be connected. The best Ethernet splitter for gaming will distribute the signal without restricting transfer speeds. As each cable sends data at the same speed, all devices will be connected.
Chassis
First, count your outputs. The chassis should be aligned with the outputs to prevent port head trapping. Your needs determine output. Gaming requires an Ethernet splitter with several ports. More connections let you expand your network.
Note the splitter’s cable length. Length decreases energy efficiency. The case shouldn’t take up an entire table. A strong metal chassis can withstand wear and tear.
Connectivity and Control
The ideal Ethernet splitter will be plug-and-play. Wherever you see manual setups, or long installation instructions, eliminate that option straight away.
If you’re wondering how the splitter distributes control signals, keep in mind that impulse signals are supplied to it. Your Ethernet splitter now has to keep track of outputs that are not being used. The greatest Ethernet splitter can shut down these ports automatically.
Power Up
As for the Ethernet splitter’s power source, devices that directly obtain their power from the power outlet are recommended. They often transmit signals faster and are more effective. Furthermore, the likelihood of possible interference is dialed down to a minimum using a direct power source.
However, many Ethernet splitters choose to connect to devices over an HDMI connection to power on. No one will notice the minor reduction in power transfer.
Price
Summary
Even the most advanced Ethernet splitters do not come at an exorbitant cost. There is a fixed range of a minimum of $10 to $60, in which you can buy a credible splitter. However, keep in mind that the price of a product is heavily influenced by its output quantity and the product longevity.
Frequently Asked Question - FAQs
1 - What’s an Ethernet splitter?
Ethernet PoE splitters allow distant devices not built for PoE to utilize it. The splitter splits the Ethernet cable’s power and data.
2 - How do Ethernet switches and splitters differ?
Splitter. The ethernet switch has several power input ports and needs the correct configuration. A splitter is a simple gadget that divides your Ethernet wire into two connections.
3 - How to Make Your Own Ethernet “splitter”
Is What You’re Searching For.
- The Ethernet cable’s RJ45 plug should be crimped on.
- Use RJ-45 Keystone Jacks on the Other End.
- Additional Splitters should be made.
- Connect the RJ45 wall plate to the One Splitter.
- Add another splitter to the Patch Panel.
4 - Does an Ethernet splitter split the Internet?
An Ethernet splitter allows two Ethernet connections. Two connections are allowed. If you just want to connect one device to the Ethernet wire, do this. It’s not for other devices.
5 - Does Ethernet splitter slow speed?
Ethernet splitters may seem like a reasonable option, but they delay network traffic. This may harm Ethernet-connected devices.
6 - How can I link 2 Ethernet devices?
Extra routers can serve as ethernet switches. Connect your single ethernet cable to the router’s input, then utilize the other ports to connect your devices.
7 - Do I need a splitter or a switch?
Switches and Ethernet splitters link computers and networking devices. Switches can be used alone or stacked or clustered, however Ethernet splitters must be used in pairs.
8 - What is PoE?
Power over Ethernet uses between 44 and 57 volts DC, usually 48 volts. This high voltage allows for efficient power transfer while being safe.
9 - Does Ethernet splitter affect performance?
Ethernet splitters may seem like a reasonable option, but they delay network traffic. This may harm Ethernet-connected devices.
10 - Is it OK to use an Ethernet splitter?
Ethernet splitters support two devices per cable. Ethernet splitters are sometimes useful. Always utilize an Ethernet switch or hub.
11 - Can you connect Ethernet switches?
Connect another Ethernet connection to the second switch and the main switch. Step 4: Plug the secondary power adapter into the main switch.
12 - Is there a way to expand my router’s Ethernet ports?
A switch can extend your router’s ports. Power-bank extensions attach to your router’s Ethernet port and give extra ports.
13 - Are all ethernet splitters the same?
Simply explained, ethernet transmissions cannot be separated the way audio/video signals can. There are devices called ethernet splitters, but they function differently from other kinds of signal splitters.
14 - What is a PoE splitter?
A PoE splitter powers non-PoE devices by separating power and data. On legacy and low-power devices like IP cameras, splitters convert PoE electricity to a lower voltage.
15 - Do Ethernet ports need power?
Standard Ethernet connections are capable of transmitting both data and power so you do not need to upgrade to a special cable to connect PoE devices. However, you will need to receive or ‘inject’ electricity into your network.
Conclusion:
An ethernet splitter has one input port and two output ports. The gadget operates with two devices. Newer models include four and eight outputs. When buying this type of device, make sure to get a pair since one will be needed to combine the connection and the other to unmerge it. In many circumstances, a network switch is preferred since it links more devices. Gloom offers many ethernet cables.
